Description

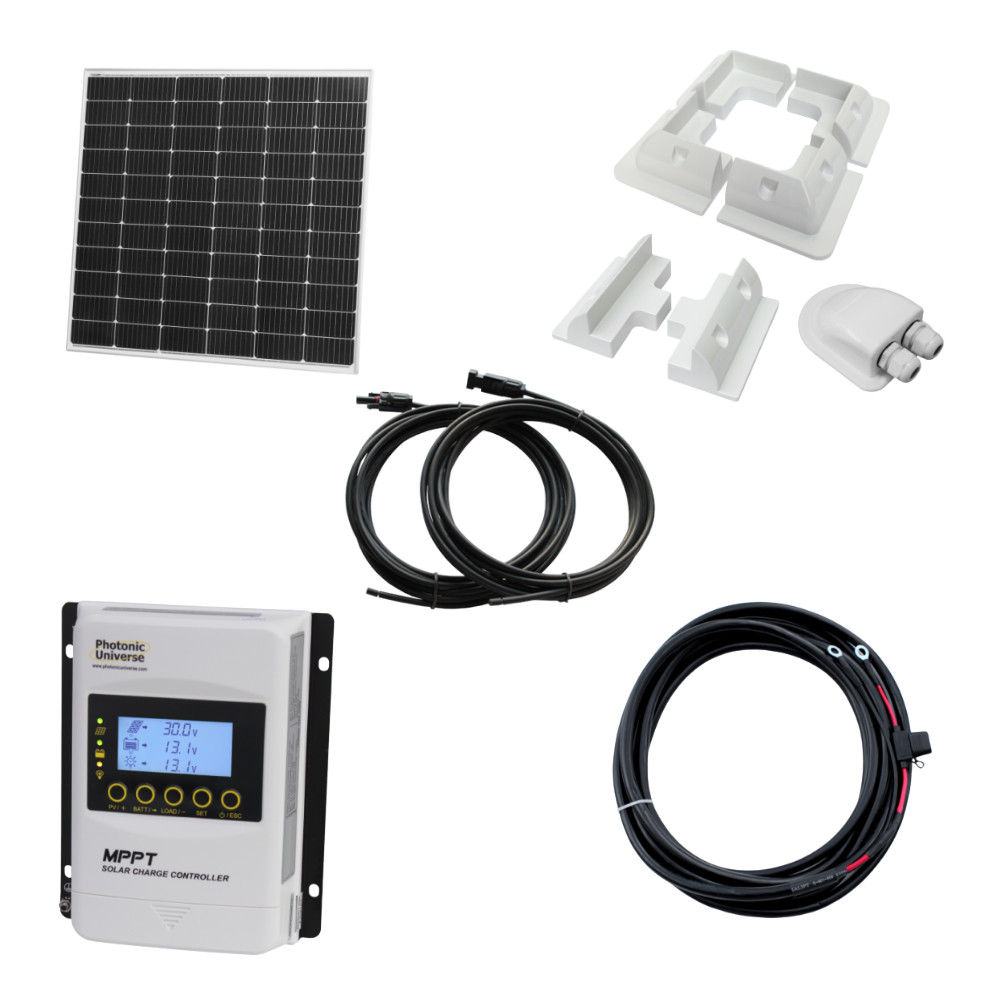

200W Rigid Bluetooth Kit, with mounts, controller and cable

This kit includes:

• Solar panel 200 w with 90cm cable
• Solar panel mounting set with heavy duty corner brackets, side brackets and a waterproof cable gland
• Pair of 5m Single Core Extension Cable Leads 4.0mm For solar Panels And Solar Charging Kits
• High Efficiency 20A MPPT Solar Charge Controller With Built In Bluetooth
• 5m 6.0mm2 dual core extension cable with a fuse holder, 20A fuse and ring terminals (8mm)

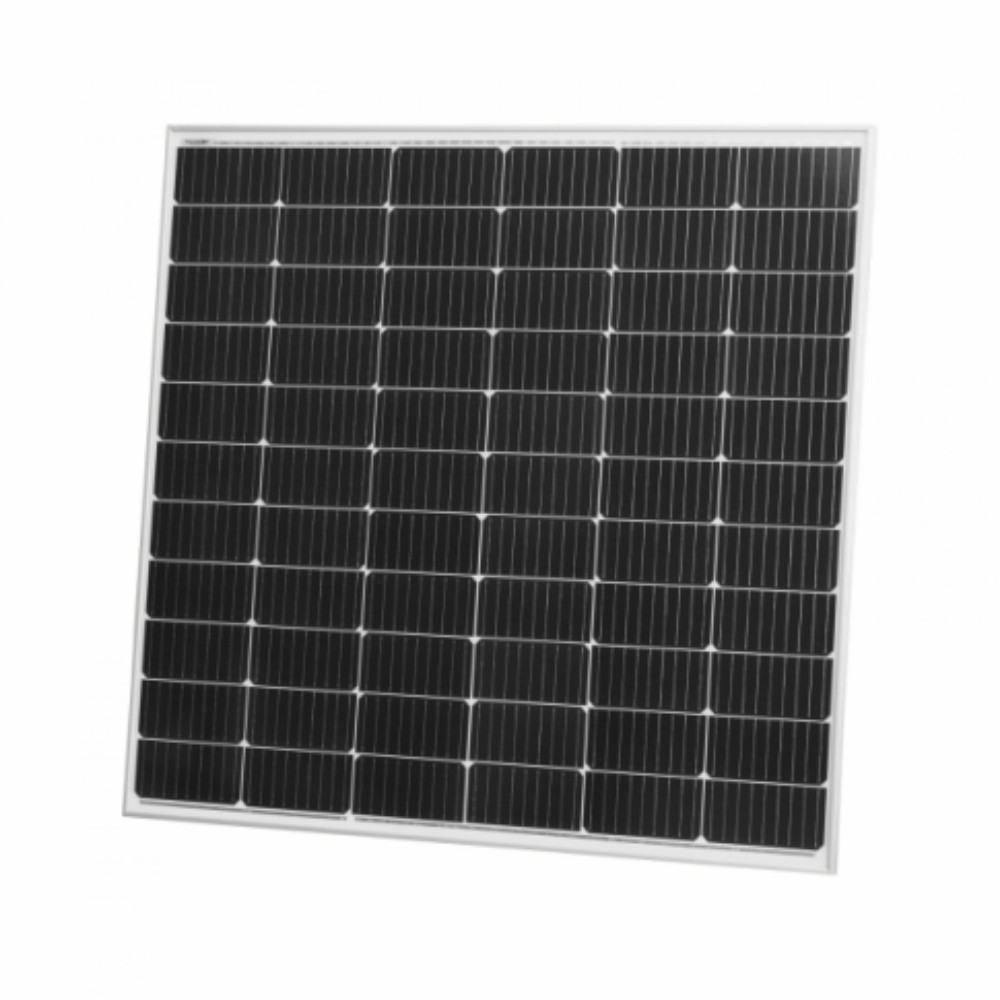

200W Monocrystalline Solar Panel With 90cm Cable

This high performance  , waterproof 200W monocrystalline solar panel is excellent and designed for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications such as in a camper van and motorhome, as well as remote applications such as telecommunications or monitoring equipment. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps).

The panel is fitted with 90cm of special solar cable, which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable the MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller.The long-lasting, high-efficiency monocrystalline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

This panel also features innovative multi-busbar solar cells, which are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even in high ambient temperatures.

If you are planning to use this solar panel to charge a battery or battery bank: please note this panel requires a solar charge controller / regulator to charge a 12V battery.

Solar panel specifications:

• • Peak power: 200W
  • Maximum power voltage: 17.49V
  • Maximum power current: 11.44A
  • Open circuit voltage: 21.12V
  • Short circuit current: 12.24A
  • Power allowance range: +/- 3%
  • Dimensions: 1038 x 992 x 30mm
  • Weight: 10.5 kg
  • 8 mounting holes
  • 2 x 90cm of high quality single core solar cable (4.0mm cross section)
  • Male and female MC4 conne

Solar panel mounting set with heavy duty corner brackets, side brackets and a waterproof cable gland

This is a solar panel mounting set for fixing solar panels to vehicles, boats and other flat roofs and surfaces.

The set includes:

• 4 heavy duty plastic corner brackets
• 2 heavy duty side brackets
• A waterproof double entry cable gland

Specifications:

– Material: plastic
– Colour: white
– Cable diameter for the cable gland: 3-7mm

Dimensions:

• Corner brackets (each): 15 x 15 x 6.5 cm
• Side brackets (each): 18 x 9 x 6.5 cm
• Cable gland: 11 x 9 x 4 cm
• Combined weight: 2.7kg

Pair of 5m Single Core Extension Cable Leads 4.0mm For solar Panels And Solar Charging Kits

This pair of single core solar extension cables is specifically designed for solar panels to carry high current and have minimal power loss. It comes with waterproof MC4 connectors (“male” on one lead, “female” on the other lead) which can be easily connected to similar MC4-type connectors coming with most solar panels,

This cable is suitable for all weather conditions including cold and hot temperatures.

4.0mm cross section is usually enough for off-grid 12V solar panels and systems up to 160W, or on-grid panels (typical voltage 30-60V) with higher power rating.

Cable specifications:

• • Conductor: tinned copper
  • Cross section: 4.0mm
  • Conductor resistance: 5.09 Ohm/km (20C)
  • Insulation and Jacket: 120C XLPE
  • Working temperature range: -40C to +120C
  • Certification: TUV
  • Outer diameter: 6.1mm

High Efficiency 20A MPPT Solar Charge Controller With Built In Bluetooth

MPPT Technology:

This solar charge controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track the maximum power voltage point of solar panels as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range – this controller can work not only with standard off-grid 12/24V solar panels, but also with multiple panels with voltage up to 100V. The maximum combined input solar power allowed for this controller is 260W for a 12V battery system or 520W for a 24V system. In particular, this controller will significantly increase efficiency of a solar system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel).

Full system protection:

This charge controller features a comprehensive set of electronic protection functions to ensure the maximum possible efficiency of your solar system. These include: reverse current prevention at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over voltage, over load, short circuit and reverse polarity protection.  The controller also has self-diagnostic capability and highlights any system errors using advanced fault-targeting technology.

Lithium Battery charging:

This solar charge controller is designed for compatibility with lithium batteries. It offers a lithium battery charging mode, which can be easily selected via the LCD display, mobile app, or PC software (refer to the user manual for details). Additionally, a “User-Defined” battery type option allows you to customize charging parameters for specific battery types.

Advanced system monitoring:

• Built-in Bluetooth connectivity allows for parameters to be monitored and changed via the mobile app. The app is available to download for iOS devices here, and for Android devices here.
• The controller automatically recognises 12/24V battery systems (note a battery should always be connected to the controller first before connecting a solar panel).
• Built-in LCD screen shows real-time charging parameters such as voltage, current (separately for solar panel / load), battery state of charge, and historical data for accumulated charge and discharge energy.
• Easy to use buttons allow the user to manually select the battery type (sealed, flooded, gel, or LiFePO4) and program load settings (e.g. set timers for lighting, fans, pumps etc).

Multiple connectivity options:

This model also features additional advanced communication technology, which offers the user the opportunity to monitor and program parameters for the solar charge controller through various methods:

1) The controller can be connected to a remote meter MT52 with an LCD screen, which displays system performance information and allows the user to manually adjust parameters and load settings

2) The controller can be connected to a Wi-Fi module to create a Wi-Fi network, to which your mobile phone or tablet can connect, in order to monitor or adjust charging parameters and controller settings through a free mobile app (available for Android and iOS users).

3) An RJ45 to USB cable can be used to connect the controller directly to your PC / laptop, where parameters and settings can be monitored and adjusted via a free computer program – Solar Station Monitor  (Windows-based PCs and laptops only).

Using one of these communication methods, the user will gain access not only to the standard charging parameters already shown via the built-in LCD screen, but also additional information such as min/max voltages, temperature, protection cut off voltages, diagnostics and other information. If required the user will also be able to amend the battery capacity, set charging volts for different charging stages, specify the duration of each charging stage, create a user-defined battery type with charging parameters specific to their battery (if the pre-existing options are unsuitable), and more.

In addition to the built-in temperature sensor and intelligent heat-dissipating design of this controller, there is also a socket for connecting a remote temperature sensor, which can be attached directly to the battery to measure the battery temperature more precisely and optimise the charging process. (Inbuilt temperature sensor is not enabled for lithium batteries).

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (>95%) of your solar system
• Fully automated operation and auto 12/24V selection
• Rated charge and discharge current: 20A
• 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm²
• Maximum solar panel voltage 100V
• Maximum solar panel power 260W (12V) / 520W (24V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Self-consumption (COM port enabled): <15mA (12V), <9mA (24V)
• Self-consumption (COM port disabled): <8mA (12V), <6mA (24V)
• Grounding: negative common ground
• Working temperature: -25°C to +50°C
• Size: 217 x 158 x 56.5 mm
• Mounting size: 160 x 149 mm
• Weight: 0.97 kg
• Multiple mounting holes (5mm diameter) for ease of installation

5m 6.0mm2 Dual Core Extension Cable With A Fuse Holder

The double core 5m cable can be used in solar charging kits to extend solar panel leads, it doubles as a  battery cable between the solar charge controller and your battery, it can also be used for many other applications, such as in vehicles, boats or for general wiring needs.

The cable comes fitted with a fuse holder and 20A blade fuse, as well as 8mm ring terminals which makes for a quicker more efficient battery connection.

6.0mm2 cross section makes this cable perfect for current up to 20A and ensures minimal power loss (for example, for off-grid 12V solar panels and charging kits up to 260W, or large 24V/36V solar panels with higher power rating).
